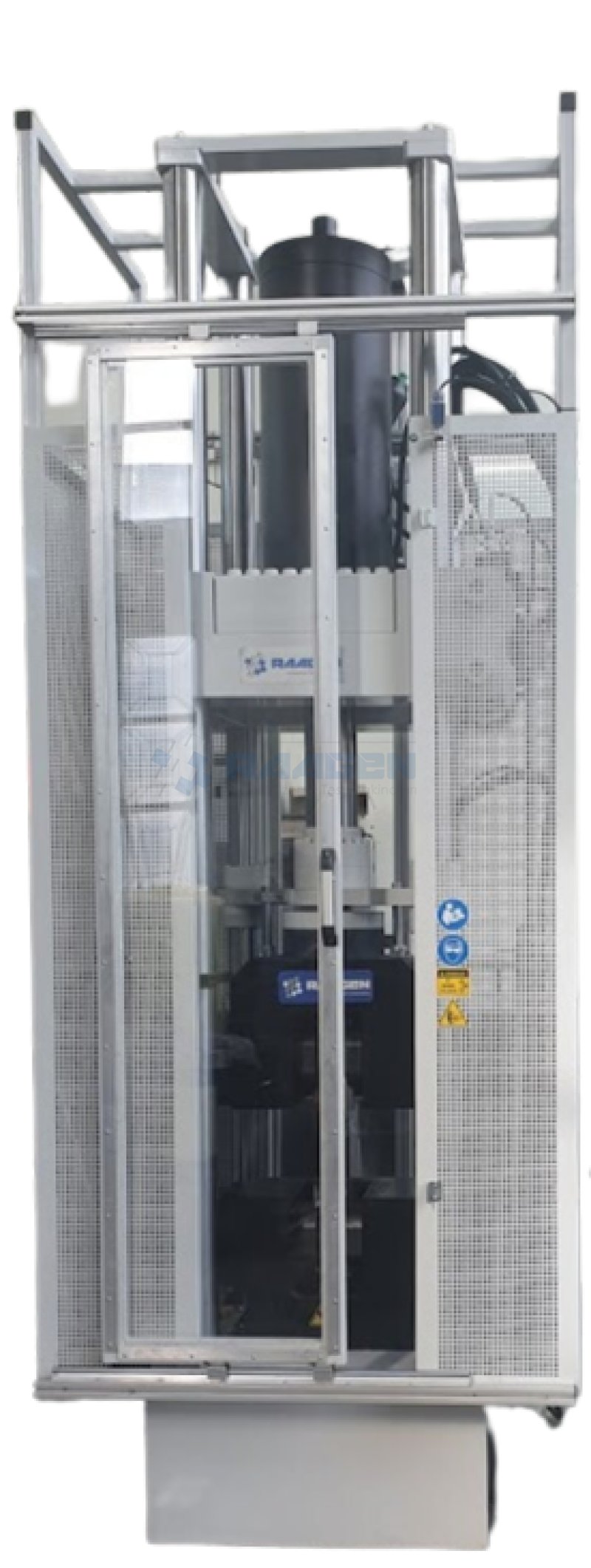

HTM-S Series Hydraulic materials testing machines have a single central hydraulic driving, Raagen design these systems with differantial servo controlled actuators.
The single space hydraulic testing machines are designed as fixed crosshead or optionally equipped with a hydraulic adjustable top crosshead to be able to adapt the test area to customer-specific requirements.
Raagen hydraulic test equipments have ergonomic operating design to facilitates easy feeding of specimens.
Force measurement is doing with high precision load cells and these load cells can be calibrated in accordance with ISO 7500-1 in Class 0.5.
The testing machine is set on vibration damping
rubber mats. A special foundation is not necessary up to 1000 kN capacity.
Hydraulic wedge action tensile grips integrated into load frame of hydraulic test machine crosshead with jaws.
Force Range: 600 kN to 2000 kN
Data acqusition rate of test machine controller: 1 - 10 kHz
Precision position measurement up to 0,1 micrometer
HTM-S series hydraulic test equipments are capable for constant speed, constant load rate, position and load controlled tests of tensile or compression directions.
Raagen HTM-S closed loop controlled hydraulic test systems meets or exceeds national and international accuracy standards for materials testing systems
