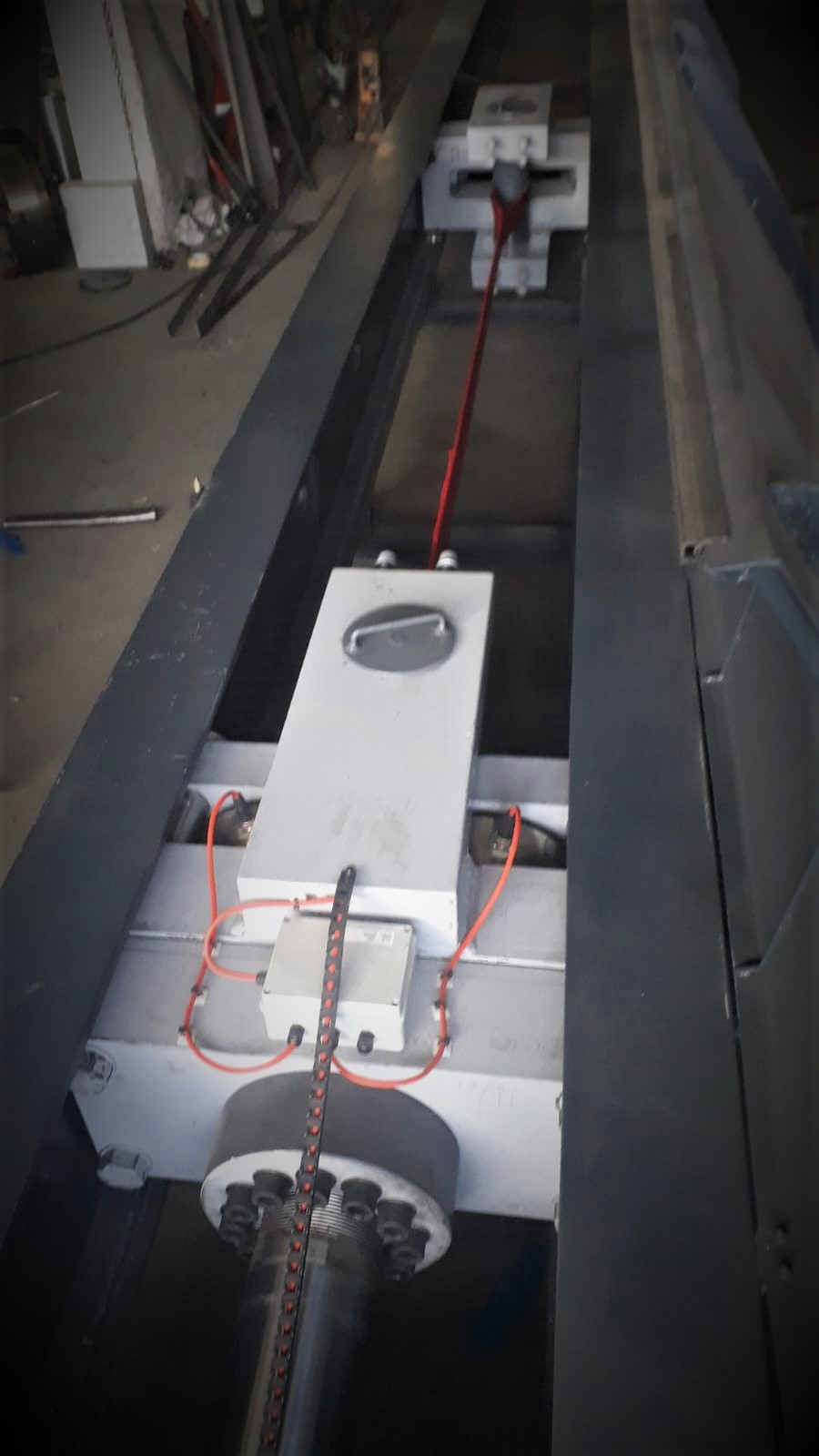

Raagen servo hydraulic horizontal testing machines have a very strong frame that allows up to 5 MN of nominal force as standard. Raagen also produce higher force capacities upon request.
The frames of horizontal test machines designs as have length of up to 40 m for testing on life size specimens.
Standard tensile tests can be done as position controlled or force controlled. Raagen Hydraulic Horizontal Test Machines can also be used as stretching machines for ropes, strands as part of the production process.
High capacity servo hydraulic horizontal tensile test machines use double acting piston for test applications. There is a spherical seal system to create minimum friction in servo cylinder of test machine.
These test frames are hydraulically powered for high strength testing and can be customized in length to meet various application requirements, as well as jaws can be changed to accommodate different shaped specimens, and alternative jaws can be provided for customers to change at any time.
Displacement or extension measurements with a special encoder or inside position measurement sensor. Raagen offers long travel extensometers for strain measurement of ropes, wires, chains. Raagen high capacity horizontal test machines equipped with servo valves, hydraulic power units and Doli EDC series electronic controller. Machine being controlled with Test & Motion material testing software.
• Special systems are available to meet unique requirements.
• Special software modulus are available for rope tensile test, stress relaxion tests, low frequency dynamic tests.
These test equipments generally being used for following tests:
• Straps Tensile Tests
• Ties Tensile Tests

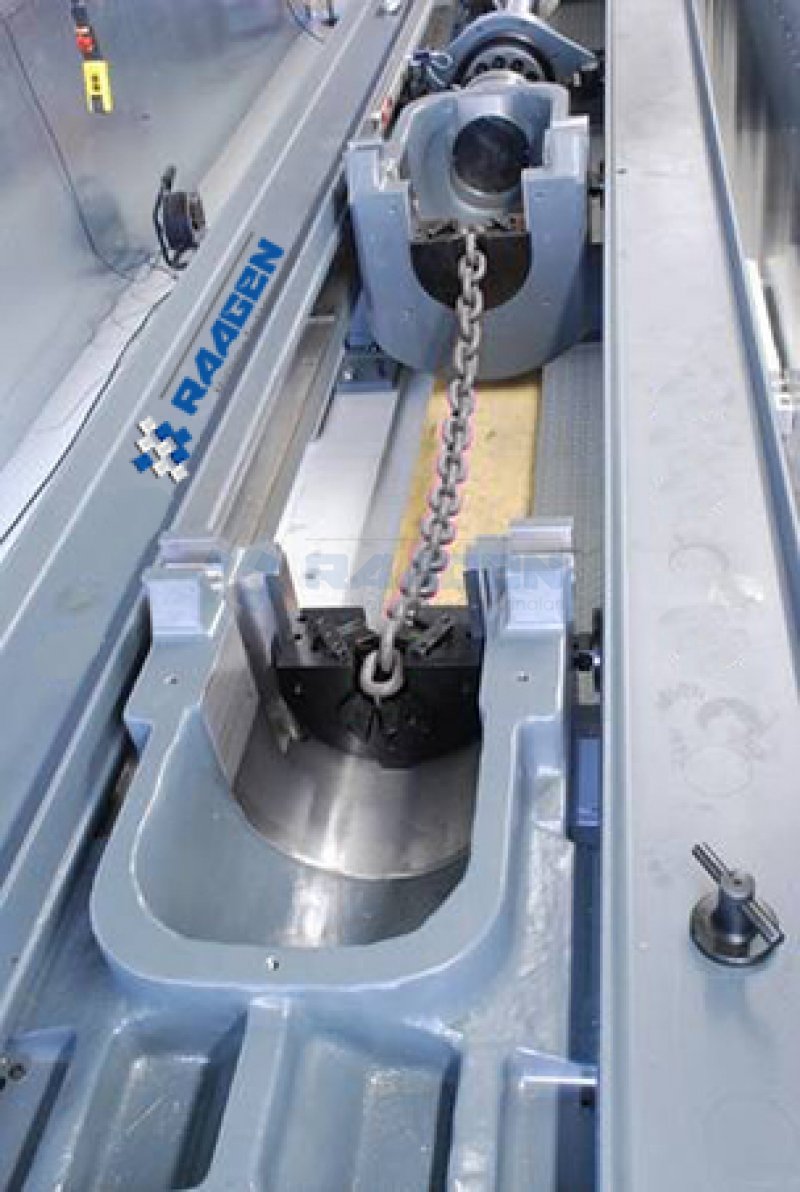

• Chain Tensile Tests
• Cable Pulling Test
• Wire Tensile Tests
• Synthetic Fiber Ropes Tensile Tests
• Natural Fiber Ropes Tensile Tests
• Steel ropes Tensile Test
• Wire Drawing Test
• Snchor Tensile Tests
