AccesoriesRaagen designs both static and dynamic axial torsion test systems with its experienced engineer staff and offers it to our customers with competitive prices and fast delivery times to meet the requirements of your most special projects.
Raagen electromechanical axial torsion test machines are designed to determine the torsional behavior of the specimen when subjected to axial force and can be produced in different torque capacities and axial capacities.
The rotation angles can be changed according to the standards. Raagen electromechanical axial torsion testing machines often have system designs that can rotate 360 degrees.
It provides very precise control thanks to the closed loop system controlled by servo motors.
Raagen Electromechanical Axial Torsion Testing Machines Features:
- Linear motion is provided by high precision ball shaft according to force capacity.
- Crosshead motion is provided by servo motor through ball shafts.
- Digital electronic controller allows to control torque, angle, force and axial displacement at the same time.
- The software has boot option.
- Software initially measures load, displacement, torque, angle, moment meter. As a result of the test; It allows you to obtain maximum torque, yield strength, breaking angle, breaking force, torque strength in different formats.
- It is designed according to user needs as floor type or desktop bodies in vertical or horizontal directions.
- Axial Capacity (kN): 1 – 10000
- Torque Capacity (Nm): 1 – 10000
- The systems are designed for static and dynamic axial torsion tests.
- Torque and force measurements are made with multi-axis torque-force sensors
Raagen Axial Torsion Testing Machines can perform procedure-controlled tests in the form of torque-controlled tests, angle-controlled tests, force-controlled tests, displacement-controlled tests and combinations of these control types.
Raagen Electronic Axial Torsion Universal Testing Machines are designed and produced by Raagen engineers according to user needs. User can choose torque and force capacity according to their own standards. Different test fixtures and accessories can be designed and offered to customers.
|
Axial Load Capacity |
kN |
±10-1000 |
|
Torsional Capacity |
Nm |
±5-1000 |
|
Configuration |
|
Twin-Column High-Stiffness Load Frame with Ball Mills with Electric Rotary Actuator System |
|
Frame Dimensions |
mm |
Depend on final configuration |
|
(width x length x heigh) |
||
|
Load Cell |
|
Class 0,5 According to ISO 7500-1 |
|
Torque Sensor |
|
%0.5 Accuracy |
|
Drive |
type |
Servo motor and belt with low noice emission |
|
Axial Position Measurement Resolution |
µm |
0,1 |
|
Torsional Position Measurement Resolution |
° |
0,1 |
|
Axial Position Measurement Accuracy |
µm |
1 |
|
Torsional Position Measurement Accuracy |
° |
0,5 |
|
Electrical Supply |
|
380 V 50 Hz |
|
Operating Environment |
|
/+10 to +38°C (+50 to +100°F) with 10 to 90% |
|
Humidity Non-Condensing |
||
|
Frame Weight (Dependent on Final Configuration) |
kg |
Depend on final configuration |
|
Applications |
||
|
Static tensile, compression, bending, torsion tests and axial torsion test. |
||
ASTM A938 Torsional Test of Wire
ASTM D1043 Torsion Plastics Test Equipment
ASTM D5279 Thermoset & Thermoplastic Dynamic Torsion Testing Machine
ASTM E2207 Axial-Torsional Fatigue Thin-Walled Tubular Materials Test Equipment

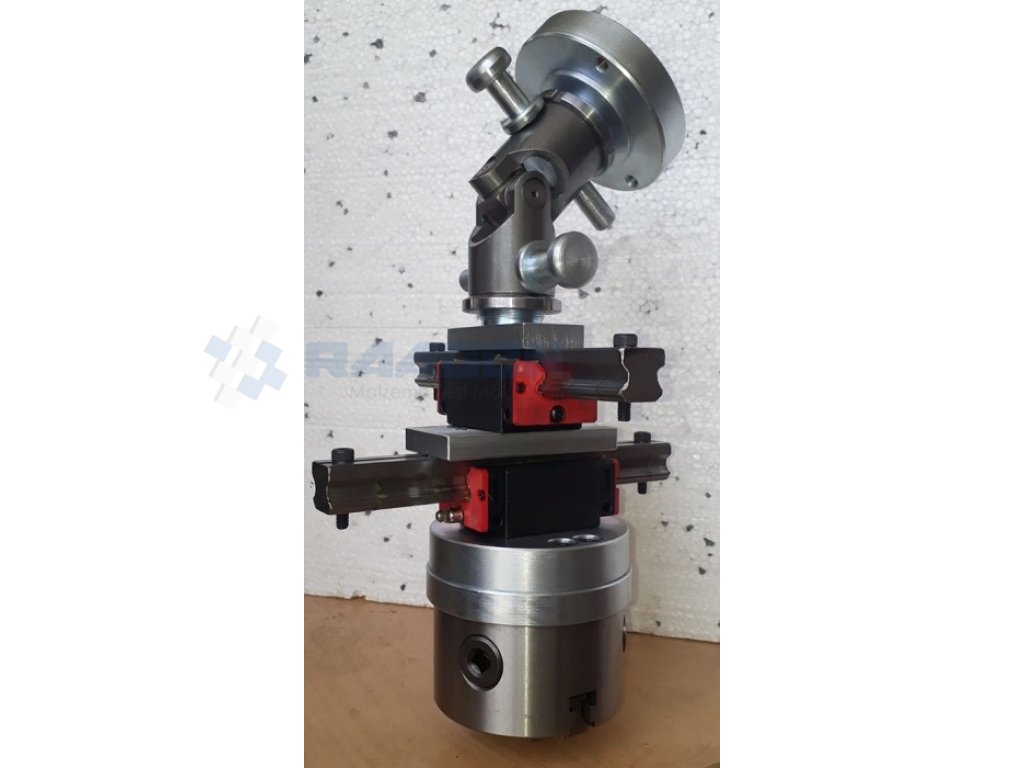

ASTM F383 Static Bend and Torsion Testing of Intramedullary Rods

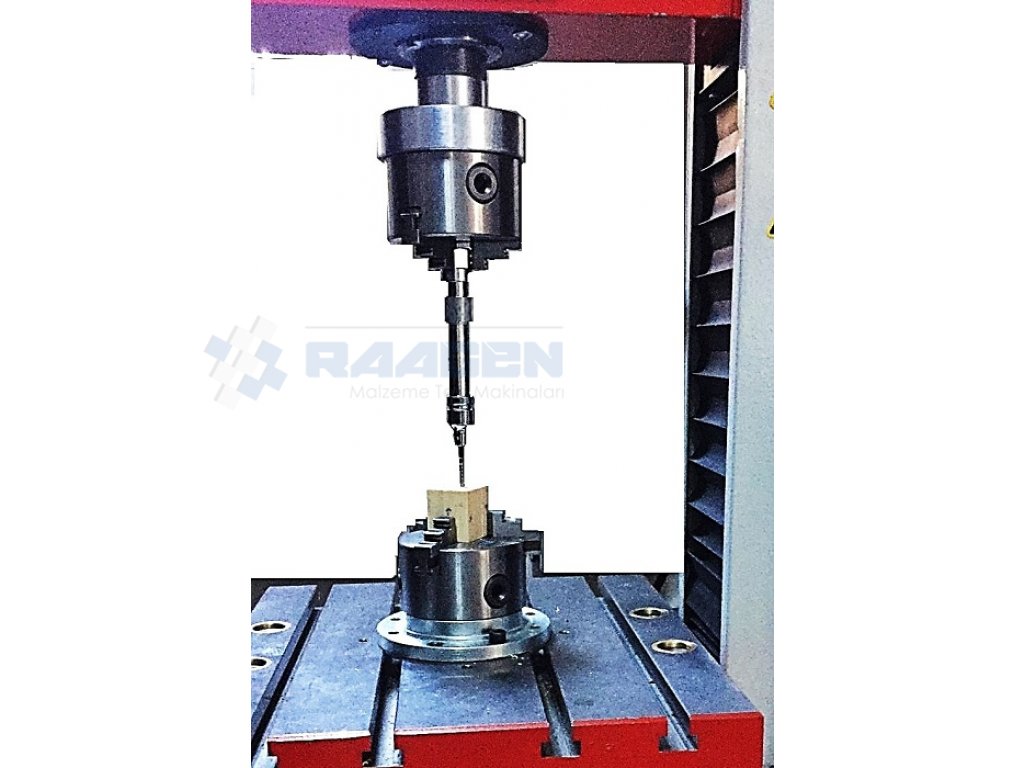

ASTM F543 Medical Bone Screw Torsion Test Equipment
ISO 6475 Bone Screw Torsion Test Methods | Equipment
ISO 7800 Metal Wire Torsion test
ISO 80369-1 Axial Torsional Luer Connector Tester
ISO 594-1 & 2 Separation Force and Unscrewing Torque Testing for Luer Tapers
ASTM F1717 Spinal Implant Static and Fatigue Testing Equipment
Servo Hydraulic Fatigue Test Machines Grips And Test Fixtures
Raagen has a big engineer team for designin of different test fixtures according to various test standards.This team analyse the customer's exact requirement of required tests. They offer correct fixture types and dimensions for customer.Raagen offers different kind of tensile test fixtures, compression test plates, flexural and bending test apparatus, shear test fixtures, peeling tests fixtures, eccentric rollers, chucks, puncture test fixtures, specimen cutters and cutting dies. See more...
Extensometers for Strain Measurement
Raagen offers all type of extensometers to use with electromechanical test machines to able to strain measurement of mechanical tests.
We are supplying of tensile test extensometers, clip on extensometers, compression test deflection gauges, transversal extensometers, video extensometers, laser extensometers, long travel extensometers and automatic extensometers. See more...
High Temperature Furnaces
Raagen develops, manufactures and supplies high temperature test furnaces for quality assessment in material testing under high temperature (HT).
Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. Suitable for variety of high temperature tests, including tension, compression, bend and fatigue testing of metals, composites, ceramics and many other materials. The furnaces can using with Raagen Electromechanical Test Machines to determine material characterisation of elevated temperatures. See more...
Environmental Chambers for Universal Testing Machines
Raagen environmental test chambers provides extensive temperature testing capabilities for evaluating material properties under non-ambient testing conditions. A full range of complementary grips, pullrods and extensometers are available for using inside of environmental test cabinets.
Raagen makes high or low temperature testing is made possible by integrate an climalitical chamber to a universal testing machine.
